Edge banding machine series,, - Manufacturers and Suppliers in China - - Zhejiang Baide Machinery Manufacturing Co., Ltd

Aluminum honeycomb edge banding machine BD-V610

1.Aluminum+wood 2.Belt-convey 3. Double-color PUR.
Send Inquiry
BD-V600(zero jointseries)

1. Straight-linear corner rounding unit (most stable cornering structure) 2. Belt-convey 3. Rectangular light spot Laser.
Send Inquiry
Compact edge banding machine BD-V300

1. Up glue pot 2.Single-motor corner trimming unit 3. 15m/min max speed.
Send Inquiry

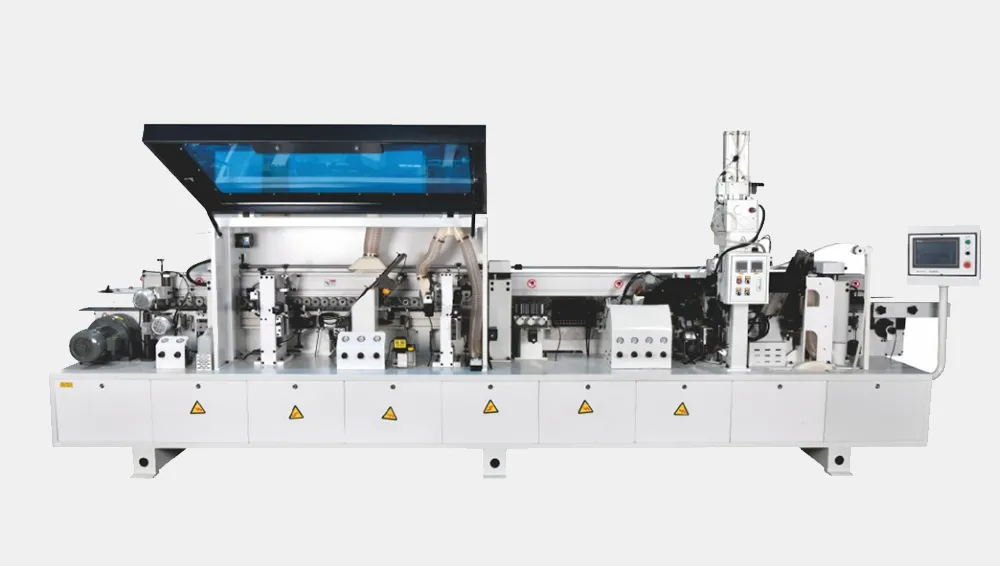

Bevel edge banding machine BD-X300

1. 45° edge tape feeding platform 2. 45°+90°Panel gluing with only 1 special glue pot 3. Stronger adhesion due to special structure.
Send Inquiry

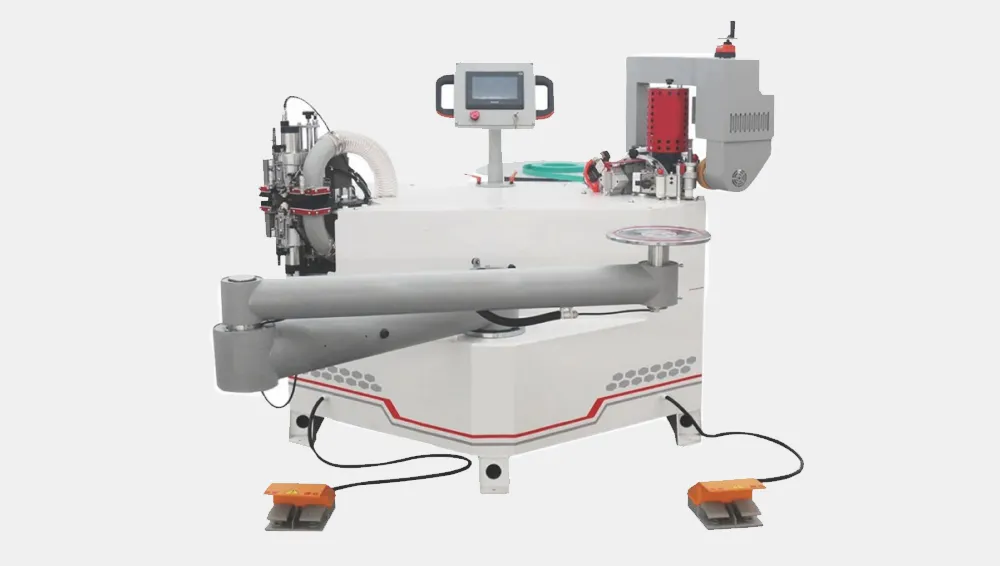

Curve trimming and edge banding integrated machine BD-S200

TECHNICAL PARAMETERNO. BD-S200Edge width13-55mmEdge thickness0.4-3mmMin.working radius5.5Feeding speed7.0m/minHeating power1.85kwPressure5-6.5cm2Edge-trimming power1.8kwTotal electrical power3.8kwNetweight900kgDimensions(L*W*H)mm2050*1500*1800Edge-Banding and gluing power0.2kwEdge-Banding lifting power0.2kwEdge-trimming lifting power0.2kwMin.circle550Input voltage380vTotal frequency50Hz
Send Inquiry
Compact edge banding machine BD-V200

TECHNICAL PARAMETERNO. BD-V200Sheet lengthMin.120mm(PVC)Sheet widthMin.80mmSheet thickness9-60mmSealing width12-63mmEdge band thickness0.4-3mmFeed rate9-12m/minInput voltage 380vInput frequency50HzTotal power10kwAir pressure0.7MpaSize(L*W*H)mm3100*800*1500Weight(kg)900
Send Inquiry
