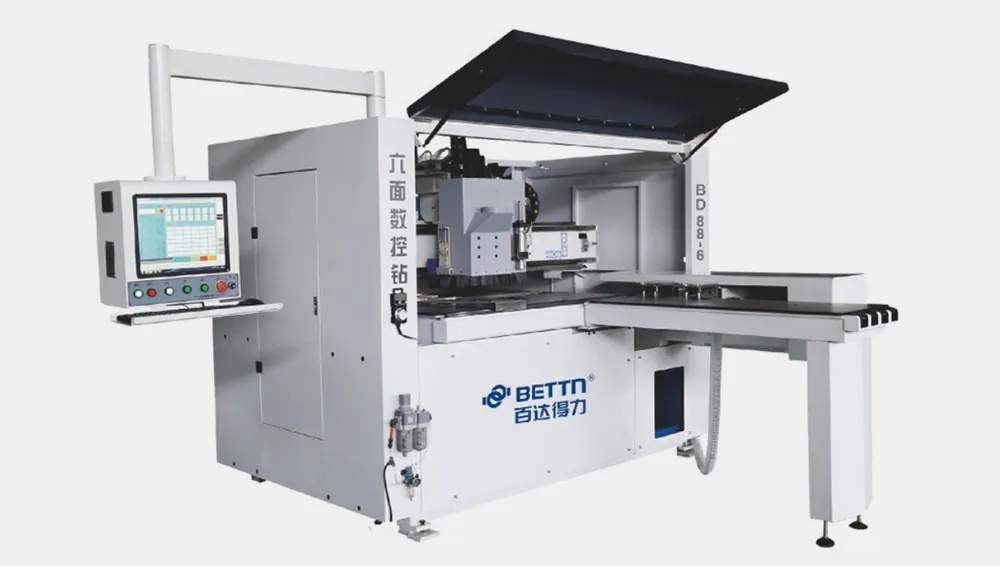

Intelligent Drilling and Miling Machining Center BD-88-6

    Intelligent Drilling and Miling Machining Center BD-88-6

    1. Taiwan Protean drilling pack
    2. Taiwan Syntec system
    3. 2 drilling packs
  • Share：
    • INQUIRY



TECHNICAL PARAMETER

NO.BD-88-6
Maximum width of sheet

1200mm

Maximum length of sheet

Unlimited

Double robot maximum speed (X and A axes)

100m/min

Number of drill axes in the vertical direction of the drill bag

12
Number of drill axes in the X-axis direction of the drill bag2+2

Number of drill shafts in the Y-axis direction of the drill bag

2+2

Number of drilled drill shafts

6

Drill shaft speed

4500rpm
Boring and milling spindle power

2.2kw

Total power

12kw

Dimensions (mm)

4680*2510*2100mm

Input voltage

380V

Total frequency

50Hz
