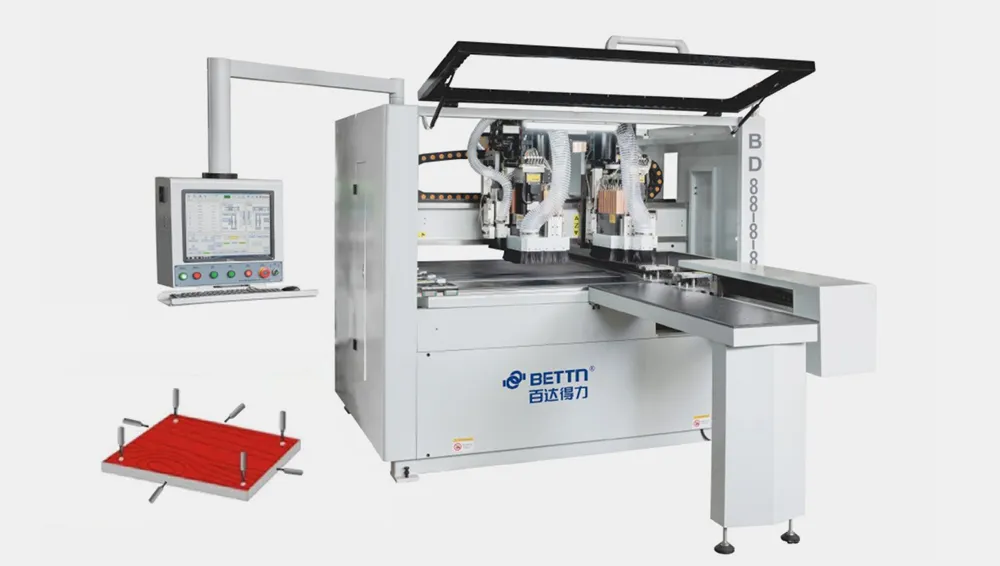

Intelligent Drilling and Miling Machining Center BD-88-8

1. Taiwan Protean drilling pack
2. Taiwan Syntec system
3. 3 drilling packs.

TECHNICAL PARAMETER

NO.BD-88-8
Length of processed plate	200-2440mm
Width of processed sheet	50-1200mm
Thickness of processed plate	16-50mm
Maximum speed of manipulator	X130m/min U130m/min
Maximum speed ofeach feed axis	Z30m/min Y80m/min
Spindle power	2.2kw*2
Maximum speed	18000rpm
Upper vertical drill	Double drill bit packs, each containing 12 pieces
Upper horizontal drill	Double drill bit packs,each containing has X-direction 2x2, Y-direction 2x2
Running vertical drill	6
Speed	4400rpm
Suction port	φ140
Total power	16kw
Upper slotting	1/2 Handle diameter,Milling cutter
Bottom slotting	1/2 Handle diameter,Milling cutter
Input voltage	380V
Total frequency	50Hz
Size(LWH)mm	468025102100mm
