High-speed Servo Edge Banding Machine(Laser) BD-V800

1. Magnetic levitation End-cutting unit (35m/min, 350 panel gap)
2. 5cm narrow panel+9mm thick panel
3. Rectangular light spot Laser

INQUIRY

Detailed Description

Function:

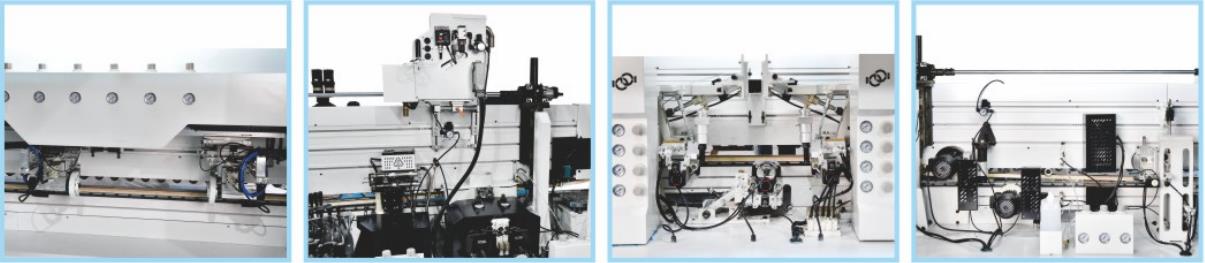

Spray separation liquid, Pre milling, Gluing, Laser, Servo tape feeding, Servo pressing, Magnetic End-cutting,Rough trimming,Servo control Fine trimming, 4-motor End-cutting,Servo control Scraping,Flat scraping,Cleaning device.

TECHNICAL PARAMETER

NO. BD-V800
Sheet length	Min.120mm(PVC)
Sheet width	Min.50mm
Sheet thickness	9-60mm
Sealing width	12-58mm
Edge band thickness	0.4-3mm
Feed rate	18-36m/min
Input voltage	380v
Input frequency	50Hz
Total power	29kw
Laser	3KW Matrix laser
Air pressure	0.8Mpa
Size(LWH)mm	98010001950
weight(kg)	7000
