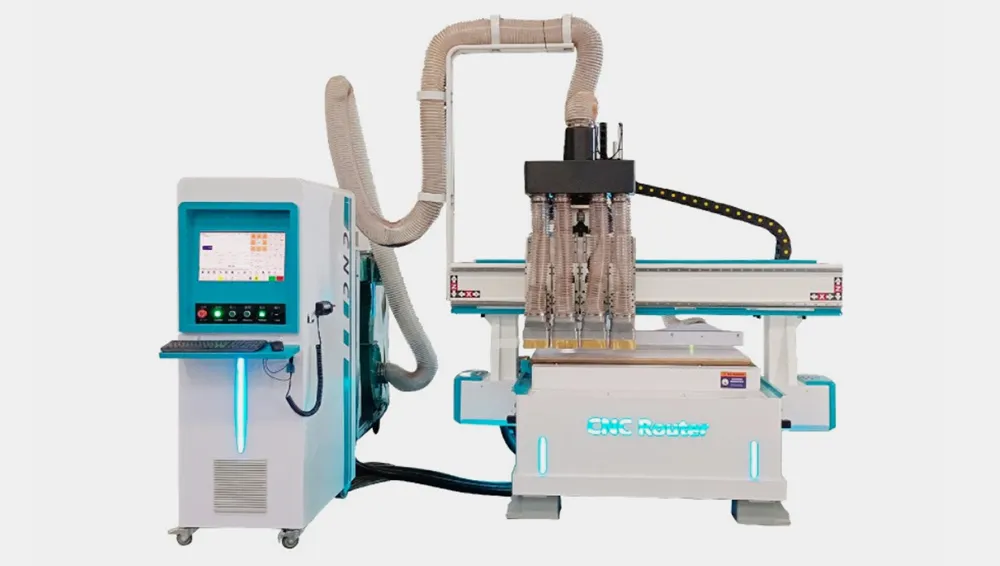

Four switching CNC cutting machine MXS-1325-4T

TECHNICAL PARAMETERNO.MXS-1325-4TEquipment NameThick walled square tube, time treatment, five axis metal processing center processingGuide railTanwan HongtaiSystemBaoyuan systemTransmissionRack gearRack1.5M High precision gear rackMachine head structure6kw Air cooled spindle*2.4.5kwAir cooled spindle*2Countertop6-zone vacuum adsorption tableVacuum pump7.5kw water circulation vacuum pumpElectricalDelixi electrical components, high flexibility shielded cablesInverterBSDReducerShimpo Positioni...

INQUIRY

Detailed Description

TECHNICAL PARAMETER

NO.MXS-1325-4T
Equipment Name	Thick walled square tube, time treatment, five axis metal processing center processing
Guide rail	Tanwan Hongtai
System	Baoyuan system
Transmission	Rack gear
Rack	1.5M High precision gear rack
Machine head structure	6kw Air cooled spindle2.4.5kwAir cooled spindle2
Countertop	6-zone vacuum adsorption table
Vacuum pump	7.5kw water circulation vacuum pump
Electrical	Delixi electrical components, high flexibility shielded cables
Inverter	BSD
Reducer	Shimpo
Positioning method	3+2 positioning handwheel tool setter
Motor	Leadshine 1500W servo(Z-axis with brake)
Pushing device	Automatic feeding device, feeding auxiliary roller
Dust-proof and lubricating	Guide rail and rack all-round dust-proof structure, with electric timing lubrication system
Control box	Integrated Control Operating System Box
Adsorption board	Hard PVC, non deformable
Processing stroke	1300*2800mm
Weight(kg)	1800kg
Size(LWH)mm	2150*3950mm
