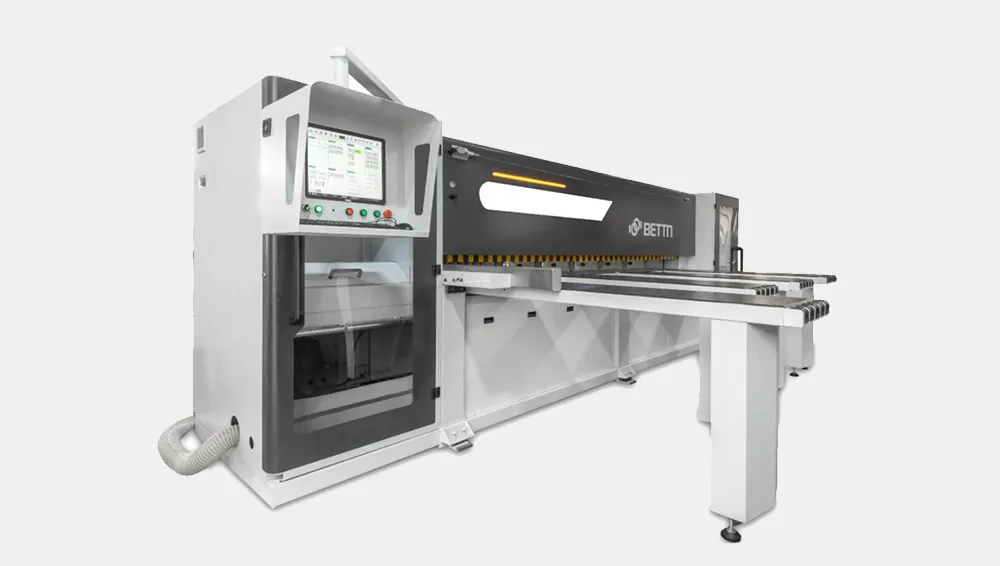

CNC Panel Saw TZ-826

TECHNICAL PARAMETERNO. TZ-826Max.Cutting length2600mmDia.of main saw blade350mmDia.of main saw spindle75mmRotation speed of main saw blade4800rpmDiameter of scoring saw spindle200mmDiameter of scoring saw spindle75mmRotation speed of scoring saw blad6500rpmForward speed of saw carriage(stepless)9-120m/minBackward speed of saw carriage(stepless)100m/minInput voltage380VTotal frequency50HzSize(L*W*H)mm7000*5500*1700mmWeight(kg)4800kg

INQUIRY

Detailed Description

TECHNICAL PARAMETER

NO. TZ-826
Max.Cutting length	2600mm
Dia.of main saw blade	350mm
Dia.of main saw spindle	75mm
Rotation speed of main saw blade	4800rpm
Diameter of scoring saw spindle	200mm
Diameter of scoring saw spindle	75mm
Rotation speed of scoring saw blad	6500rpm
Forward speed of saw carriage(stepless)	9-120m/min
Backward speed of saw carriage(stepless)	100m/min
Input voltage	380V
Total frequency	50Hz
Size(LWH)mm	700055001700mm
Weight(kg)	4800kg
