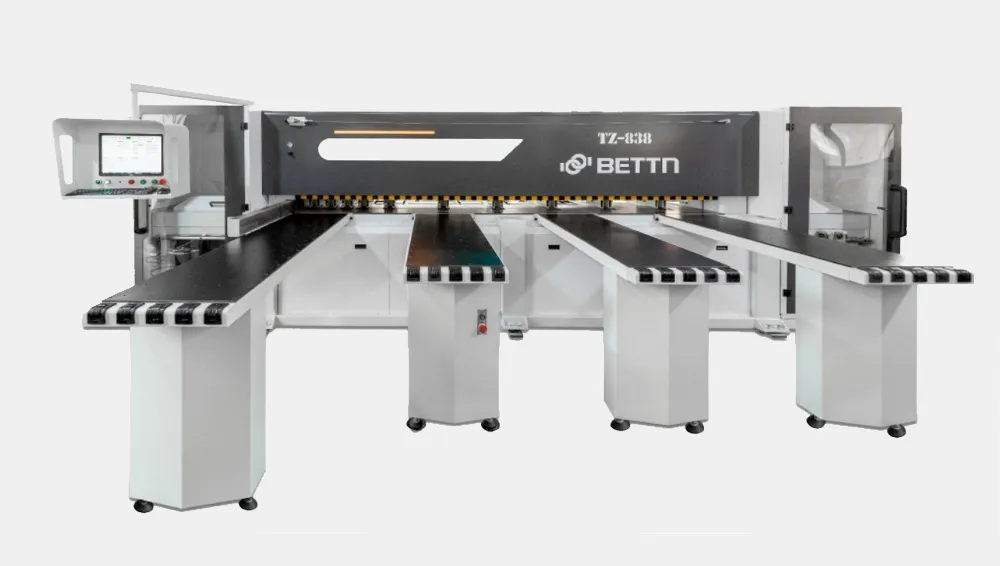

CNC Panel Saw TZ-838

TECHNICAL PARAMETERNO. TZ-838Maximum sawing size3800*3800*90mmMain motor power11kw(Optional15kw)Main saw speed4800rpmGroove saw speed6500rpmGrooving saw motor power1.5kwMain saw specifications380*60*4.4mmGroove saw specifications200*60*4.3-5.5mmSide lean activation distance600mmSaw servo1.5kwGripper feeding servo1.5kwHigh pressure blower3.7kwVacuum nozzle diameter100mmMaximum return speed of saw truck120m/minMaximum moving speed of manipulator90m/minNumber of clamps10Air usage150/minMaximum...

INQUIRY

Detailed Description

TECHNICAL PARAMETER

NO. TZ-838
Maximum sawing size	3800380090mm
Main motor power	11kw(Optional15kw)
Main saw speed	4800rpm
Groove saw speed	6500rpm
Grooving saw motor power	1.5kw
Main saw specifications	380604.4mm
Groove saw specifications	200604.3-5.5mm
Side lean activation distance	600mm
Saw servo	1.5kw
Gripper feeding servo	1.5kw
High pressure blower	3.7kw
Vacuum nozzle diameter	100mm
Maximum return speed of saw truck	120m/min
Maximum moving speed of manipulator	90m/min
Number of clamps	10
Air usage	150/min
Maximum load-bearing capacity of rearloading platform	2000kg
Input voltage	380v
Total frequency	50Hz
Size(LWH)mm	630086001900mm
Weight(kg)	6000kg
