Full-Servo Edge Banding Machine

    Full-Servo Edge Banding Machine

    BD-V900
  • Share：
    • INQUIRY

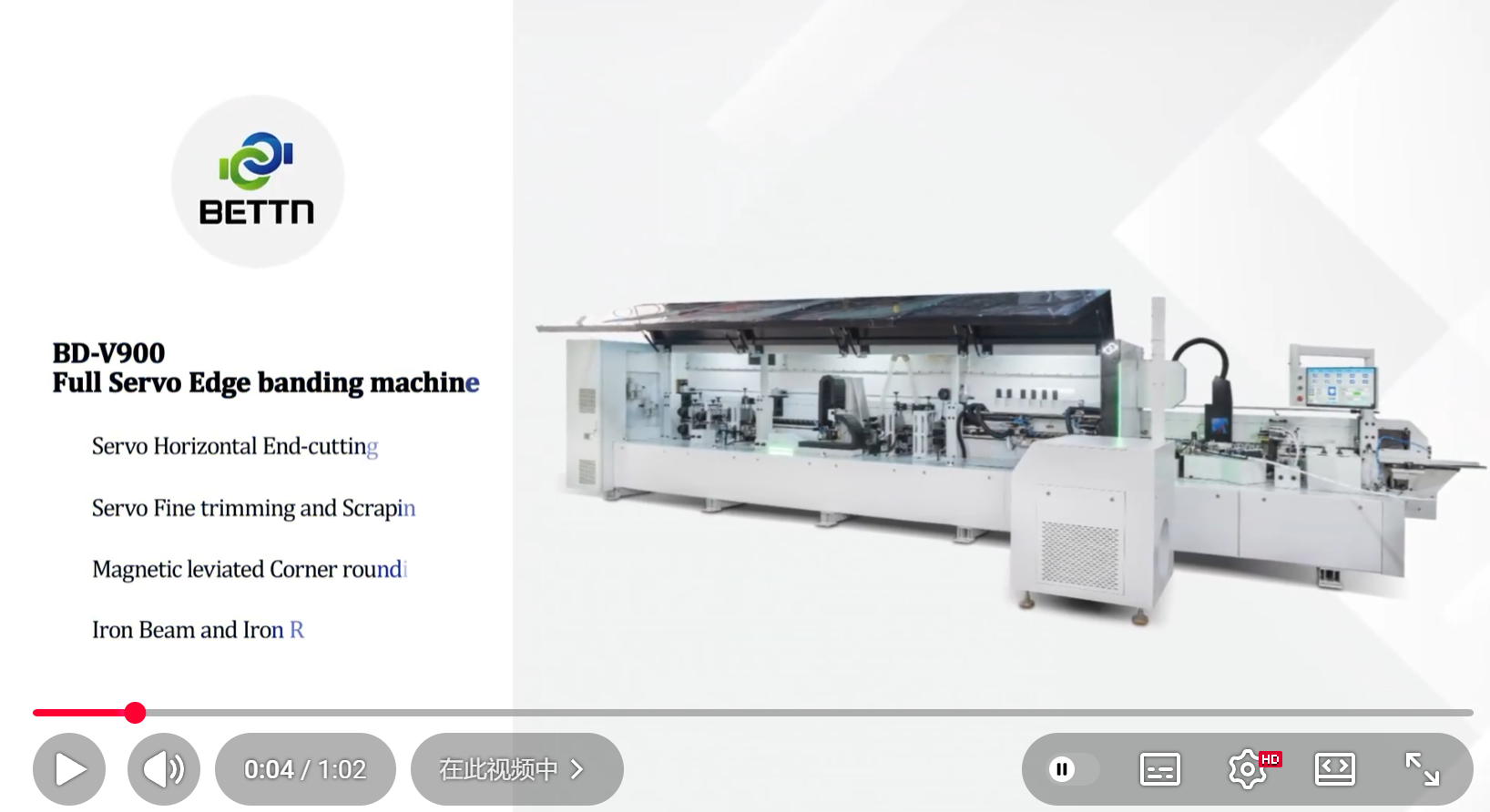

     Full-Servo Edge banding machine BD-V900

   TECHNICAL PARAMETER

Function:

1.Seperation liquid spray 2.Pre-milling 3.Eva+ PUR glue pot+2KG pur melting machine+pre-melt box 4.Laser unit (3KW rectangular shape) 5.4-track servo edge tape feeding+servo pressing unit 6.Servo End-cutting 7.rough-trimming 8.Servo fine-trimming 9.1-motor magnetic leviated corner rounding unit 10.servo scraping unit 11.cleaning liquid spray 12.Reciprocal buffing unit

DESCRIPTION

Sheet length

Sheet width

Sheet thickness

Sealing width

Edge Band Thickness

Feed rate

Input voltage

Input frequency

Total power

Laser

Air pressure

size



weight (kg)

BD-V900

Min.120mm(PVC)

Min.50mm

9-60mm

12-58mm

0.4-3mm

20-35m/min

380v

50Hz

48KW

3KW

0.8Mpa

9800*1000*1900mm

7000kg
