How To Automatically Switch The Thickness Of Edge Band Tape On An Edge Banding Machine Without Manual Adjust

2026-06-22 18:46:07

How To Automatically Switch The Thickness Of Edge Band Tape On An Edge banding machine Without Manual Adjust？

Many furniture factories has big problems on using different edge band tape. The thickness of the these edge band is different, so the traditional edge bander machine users have to adjust the machine parts such as trimming unit, scraping a lot.

This problems take much effort and decrease working effiency.

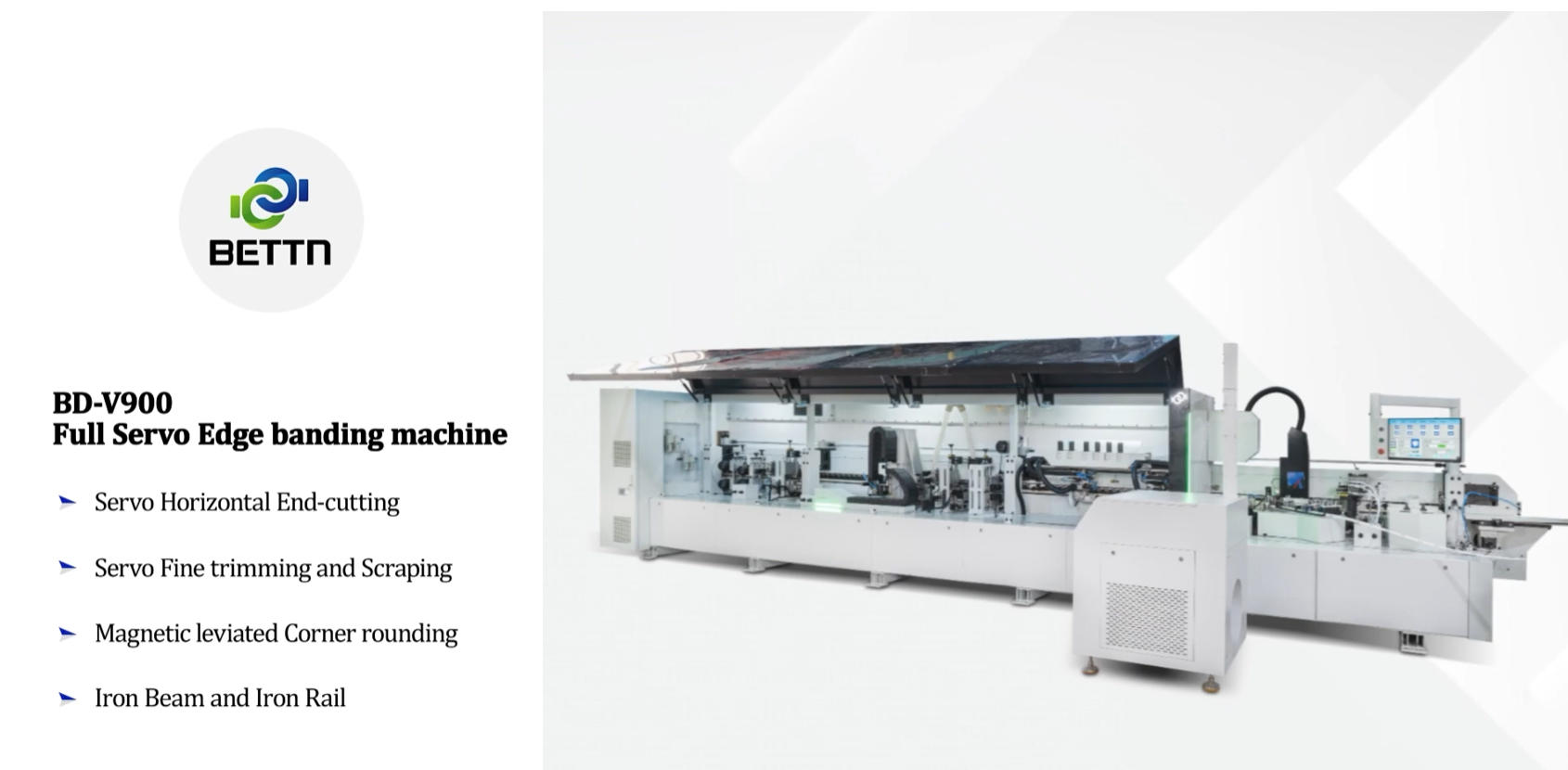

To solve this problem, BETTN now recommends a fully servo control edge banding machine to you.

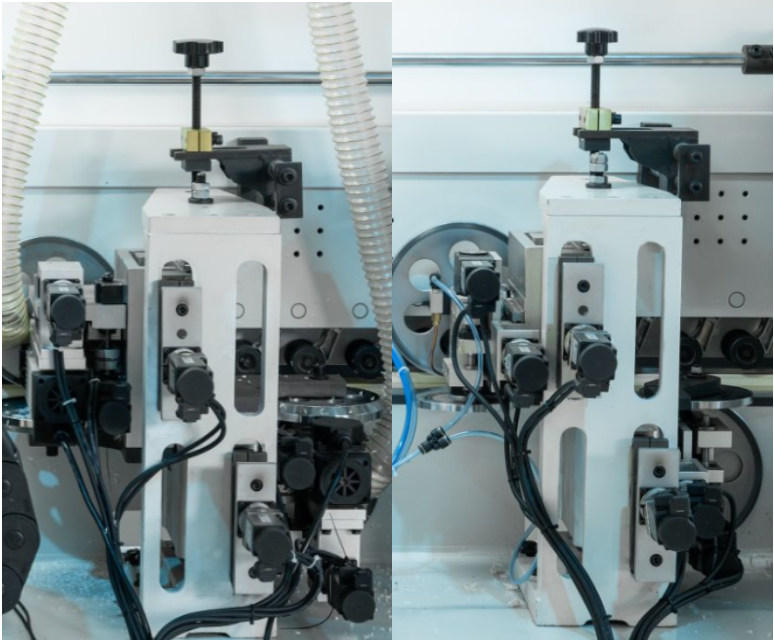

All the units on the edge bander is servo controlled. One-Click on computer, you can switch from 1.0mm to 1.2mm, 1.5mm, 1.8mm 2,0mm Edge Band Thickness. The Servo motor will precisely change the location of the blade and unit.

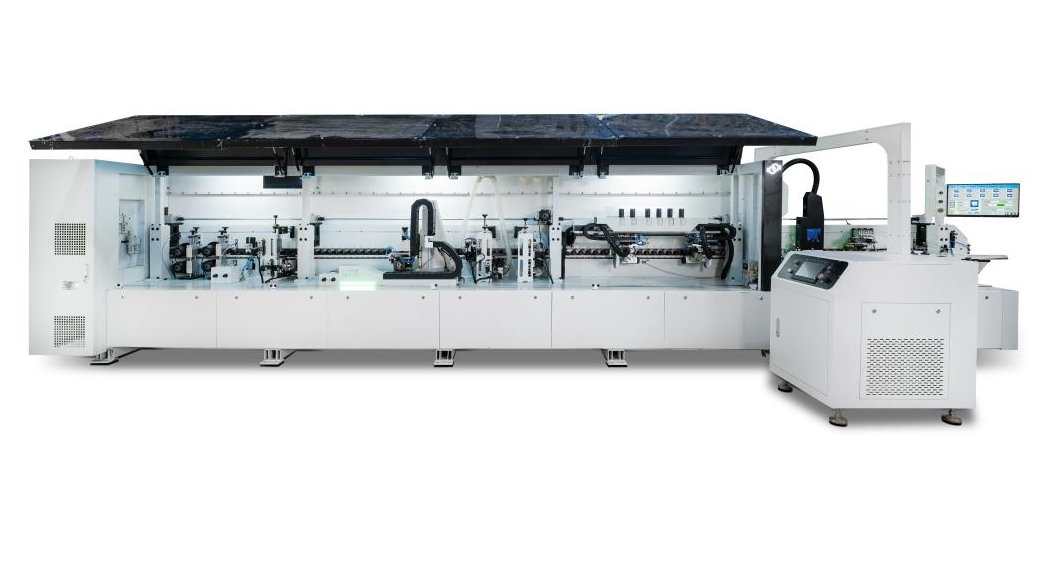

Servo Edge Bander Realizes Flexible Production.

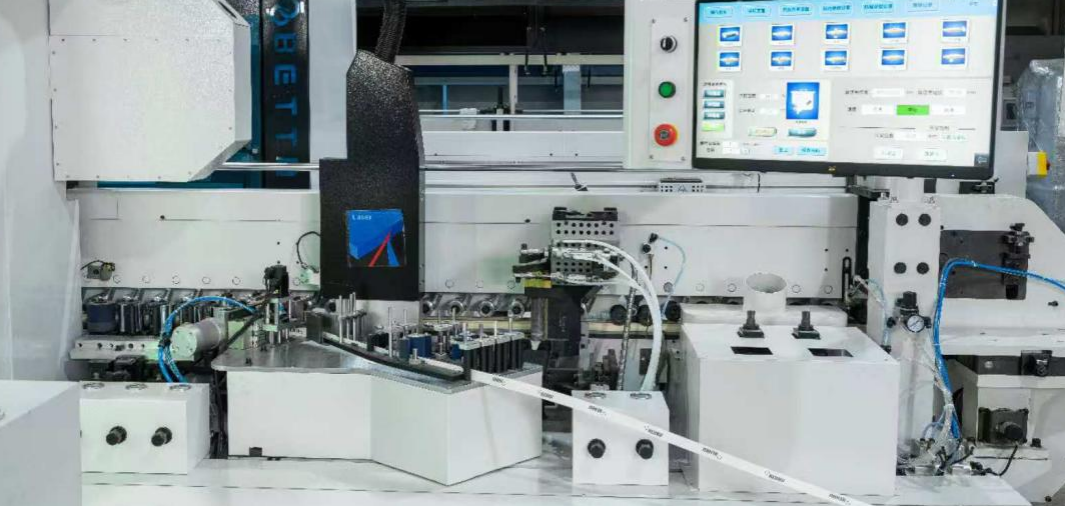

Full servo edge bander is equipped with multiple independent servo motors and intelligent PLC system. Pre-store processing formulas of more than 10 kinds of edge band tape thickness. Just select the corresponding program on the touch screen when replacing edge tapes, all stations including edge feeding, gluing, pressing, trimming and scraping unit will automatically calibrate synchronously within seconds. With thickness sensor for real-time closed-loop correction, it supports most edge band materials with stable precision.

No more long downtime for adjustment, setup time is reduced by over 90%. Standard servo programs avoid human mistakes and lower reject rate, perfectly matching multi-type small custom orders. One machine meets all edge banding demands to cut cost and improve efficiency, the ideal choice for intelligent upgrade of furniture production lines.
